Steinbock Madagascar Rosewood "Small" 14" Cutaway
The smallest of my standard sizes, this 14" is my interpretation of a 00 size guitar. Even with its small frame, this instrument is packed full of tone. It has a rich bass, an even midrange, and sweet trebles. Although it retains some of the delicate characteristics that these smaller-sized guitars are known for, it projects much further than one...
TONEWOOD SPECS
Soundboard: Italian Alpine Spruce, heavy bearclaw figureBody Wood: Madagascar Rosewood
Neck Wood: Signature "Traditional Comfort" profile
Fretboard: Macassar Ebony
Bridge: Macassar Ebony
The smallest of my standard sizes, this 14" is my interpretation of a 00 size guitar. Even with its small frame, this instrument is packed full of tone. It has a rich bass, an even midrange, and sweet trebles. Although it retains some of the delicate characteristics that these smaller-sized guitars are known for, it projects much further than one might expect. The top, an extremely figured piece of Italian Alpine Spruce, was carefully chosen for its stiffness, density, and Sound Radiation Coefficient to be extremely responsive and dynamic for fingerstyle use on a small-bodied guitar.

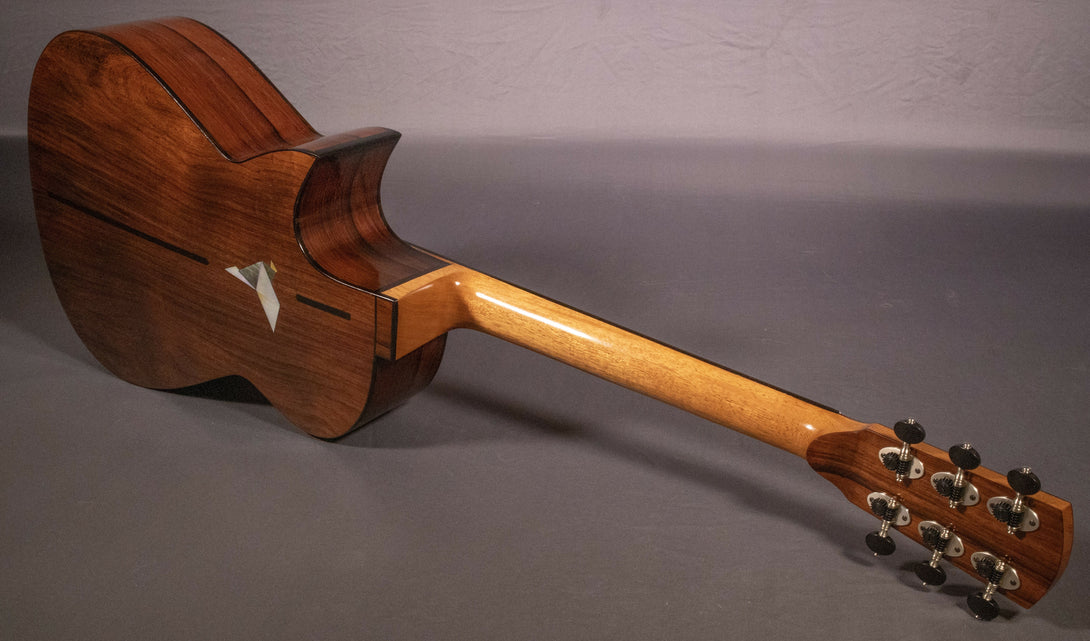

This instrument is one of only a couple "spec" guitars I'm able to make per year that are not already headed to a specific client. This guitar will be featured at the 2024 La Conner Guitar Festival. I drew inspiration for this guitar from my childhood love for origami—the japanese art of paper folding. An origami dove is inlaid in the waist area of the back, composed of white mother-of-pearl, gold mother-of-pearl, and black mother-of-pearl to simulate origami folds. The endgraft features a folded-paper motif, as if the Madagascar Rosewood was creased and folded away, exposing the mahogany tail block underneath. The headstock also features an origami motif in mahogany. I chose an intensely bearclaw-figured top as well, as it is reminiscent of some styles of ornate origami paper. I have always loved the art of Origami, and it was a lot of fun to incorporate that into my own art medium.
This guitar also features custom handmade Scheller Gitarrenmechinaken tuning machines, a slightly elevated fretboard, florentine cutaway, and a side soundport.
Body Shape: Small, 14", 14th fret join
Scale: 24.9” (632.46 mm)
Nut Width: 1 3/4"
Bridge Spacing: 2 3/16
Top: Italian Alpine Spruce, Mastergrade Bearclaw Figure (Picea abies)
Back/Sides: Madagascar Rosewood (Dalbergia baronii)
Neck: Genuine Honduran Mahogany w/ elevated fretboard
Neck Joinery: Traditional dovetail
Fretboard: Macassar Ebony w/ inlay motif on 12th fret
Fretboard Radius: 16”
Number of Frets: 21
Fretwire: Medium, 18% NickelSilver
Side Position Markers: Gold Mother-of-Pearl
Bridge: Macassar Ebony, Slotted
Bridge Pins: Unslotted ebony, 5 degree taper
Rosette: Decorative Purfling, Madagascar Rosewood & Ebony Origami motif
Headstock Overlays: Madagasar Rosewood (front & back) w/ Origami inspired inlay (front)
End Graft: Mahogany, Ebony, Rosewood "folded paper" motif
Soundport: Oval, unbound
Binding: West African Ebony
Tuning Machines: Custom Scheller Gitarrenmechaniken
Finish: French Polish shellac, ultra-blonde tint
Access Case Included
Build Specifications
MODEL | Steinbock Madagascar Rosewood "Small" 14" Cutaway |
YEAR BUILT | 2024 |
SOUNDBOARD WOOD | Italian Alpine Spruce, heavy bearclaw figure |
BACK & SIDE WOOD | Madagascar Rosewood |
BODY SHAPE | Small, 14" |
BODY DEPTH | 110 mm |
SCALE LENGTH | 24.9" |
FRETBOARD WOOD | Macassar Ebony |
BRIDGE WOOD | Macassar Ebony |
NUT & SADDLE | Bone |
NUT WIDTH | 1 3/4" |
STRING SPACING | 2 3/16" |
FRET WIRES | medium height/width, 18" nickel-silver |
HEADSTOCK | Standard/unslotted |
INLAY NOTES | Origami themed inlays: origami dove inlaid into the back, with "folded paper" inlays on headstock, end graft, rosette and 12th fret |
TUNING MACHINES | Custom Scheller Gitarrenmechaniken handmade tuners, ebony buttons |
NECK INFO | Signature "Traditional Comfort" profile |
TRUSS ROD | double action, soundhole access |
BINDING | West African Ebony |
BRACING | Signature Steinbock Fine Instruments bracing with active back coupled to soundboard |
ROSETTE | folded paper motif |
BRIDGE PINS | ebony, unslotted |
12TH FRET ACTION | .090 E to .070 e |
RADIUS DATA | 16" fretboard radius |
BUILD FINISH | French Polish Shellac |
AMPLIFIED? | No |
AMP TYPE | None |
STRINGS | D'addario XS 12-53 phosphor bronze |
CASE INFO | Access Hardshell Case |
WORKSHOP CITY | Orem UT |
ORIGIN COUNTRY | United States of America |
